产品材质: PA尼龙(polyamide),外层夹紧圈(聚甲醛pom)
螺纹规格: 公制螺纹(Mefric)/德制螺纹(PG)/英制螺纹(G)
工作温度: -40~+110℃
颜 色: 黑色

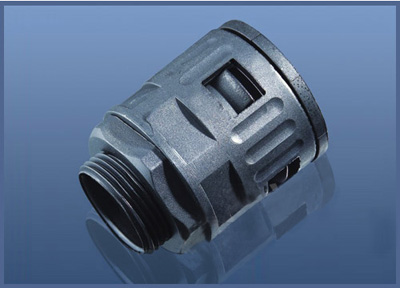

使用方法: JS-RQG1型塑料波纹管接头是软管的配套产品,可接入设备箱体上,也可根据选用螺纹接入进出口为内螺纹的电动设备上,只需软管插入接口即可。
型号 | 适配软管 | 螺纹尺寸公制 | AG外径(mm) | AG内径(mm) | GL (mm) | H | 包装单位个/包 |
JSF-RQG1-M12 | AD10.0 | M12×1.5 | 12.0 | 8.0 | 10 | 18.0 | 100 |
JSF-RQG1-M16 JSF-RQG1-M12 JSF-RQG1-M18 | AD13.0 | M16×1.5 | 16.0 | 10 | 10 | 19.0 | 100 |
JSF-RQG1-M18 | AD15.8 | M18×1.5 | 18.0 | 12.0 | 10 | 23.0 | 50 |
JSF-RQG1-M20 | AD18.5 | M20×1.5 | 20.0 | 14.3 | 12 | 25.0 | 50 |
JSF-RQG1-M20 | AD21.2 | M20×1.5 | 24.0 | 17.0 | 13 | 27.0 | 50 |
JSF-RQG1-M24 | AD21.2 | M24×1.5 | 24.0 | 17.0 | 13 | 27.0 | 50 |
JSF-RQG1-M25 | AD25.0 | M25×1.5 | 25.0 | 19.5 | 14 | 30.0 | 50 |
JSF-RQG1-M27 | AD28.5 | M27×2.0 | 27.0 | 22.0 | 14 | 33.0 | 20 |
JSF-RQG1-M32 | AD34.5 | M32×2.0 | 32.0 | 26.0 | 20 | 35.0 | 10 |
JSF-RQG1-M36 | AD34.5 | M36×2.0 | 36.0 | 29.0 | 14 | 35.0 | 10 |
JSF-RQG1-M48 | AD42.5 | M48×2.0 | 48.0 | 36.5 | 15 | 38.5 | 8 |
JSF-RQG1-M60 | AD54.5 | M60×2.0 | 60.0 | 53.0 | 16 | 39.0 | 5 |
型号 | 适配软管 | 螺纹尺寸 | AG外径(mm) | AG内径(mm) | GL (mm) | H | 包装单位个/包 |
JSF-RQG1-PG7 | AD10.0 | PG7 | 12.3 | 8.0 | 10 | 18.0 | 100 |
JSF-RQG1-PG9 | AD13.0 | PG9 | 15.0 | 10 | 10 | 19.0 | 100 |
JSF-RQG1-PG11 | AD15.8 | PG11 | 18.4 | 12.5 | 10 | 23.0 | 50 |
JSF-RQG1-PG13.5 | AD18.5 | PG13.5 | 20.2 | 14.3 | 12 | 25.0 | 50 |
JSF-RQG1-PG16 | AD21.2 | PG16 | 22.3 | 17.0 | 13 | 27.0 | 50 |
JSF-RQG1-PG21 | AD28.5 | PG21 | 28.0 | 22.0 | 14 | 33.0 | 20 |
JSF-RQG1-PG29 | AD34.5 | PG29 | 36.7 | 29.0 | 14 | 35.0 | 10 |
JSF-RQG1-PG36 | AD42.5 | PG36 | 46.7 | 36.5 | 15 | 38.5 | 8 |
JSF-RQG1-PG48 | AD54.5 | PG48 | 59.0 | 53.0 | 16 | 39.0 | 5 |
